Whole-Home Standby · 200A Smart Switch In stock · ships from Dallas

Generac Guardian 22kW Home Standby Generator with 200A Whole-House Smart Transfer Switch & Wi-Fi

The Generac Guardian 22kW Home Standby Generator is America’s #1 selling emergency backup power solution.

5.0 (6 reviews)

Select Continuous Power Rating 22kW (Guardian 70432)

$4,499.00 $5,899.00 SAVE $1,400.00 (24% OFF)

In stock · ready to ship Ships tomorrow Order today and it leaves our Dallas, TX warehouse tomorrow.

Tracking number sent by email as soon as the freight carrier picks up your order.

Secure, encrypted checkout

3-year warranty
30-day returns
Free delivery

Continuous LP

22,000 W

Liquid Propane

Continuous NG

19,500 W

Utility Natural Gas

Smart Switch

200 Amps

Service-Rated Whole House

Harmonic Distortion

< 5% THD

Clean Utility Grade

Overview

Generac Guardian 22kW Home Standby Generator with 200A Whole-House Smart Transfer Switch

The Generac Guardian 22kW Home Standby Generator is America’s #1 selling emergency backup power solution. Engineered and built in Wisconsin, USA, the Guardian 22kW delivers whole-house power protection during severe storms, hurricanes, grid failures, and rolling blackouts. Powered by Generac’s purpose-built G-Force 1000 Series 999cc pressurized V-twin engine, this system provides 22,000 continuous running watts on Liquid Propane (LP) and 19,500 continuous running watts on Natural Gas (NG).Equipped with a 200-Amp NEMA 3R service entrance rated smart automatic transfer switch (ATS), True Power™ technology yielding under 5% harmonic distortion, and free Mobile Link™ 4G/Wi-Fi remote monitoring, the system automatically detects a power failure and restores utility-grade electricity to your entire home within 10 seconds—even when nobody is home.

Automatic 10-Second Transfer Detects utility outage instantly and restores full power to your electrical panel in seconds without lifting a finger.
200-Amp Whole-House Smart Switch Service-entrance rated NEMA 3R aluminum switch manages 100% of your home’s electrical loads with smart load shedding.
Generac G-Force 1000 Series Engine Purpose-built pressure-lubricated V-twin engine engineered specifically for extreme continuous generator duty cycles.
True Power™ Clean Utility Electricity Less than 5% total harmonic distortion (THD) provides clean, stable power safe for computers, HDTVs, and medical gear.
Mobile Link™ Wi-Fi Connectivity Monitor operating status, battery health, fuel levels, and maintenance alerts anywhere in the world via smartphone.
Quiet-Test™ Self-Exercise Mode Runs an automatic weekly 5-minute diagnostic test at lower RPM to conserve fuel and minimize neighborhood noise.
RhinoCoat™ Corrosion-Proof Aluminum All-weather marine-grade aluminum enclosure withstands 150+ MPH hurricane-force winds and coastal salt spray.

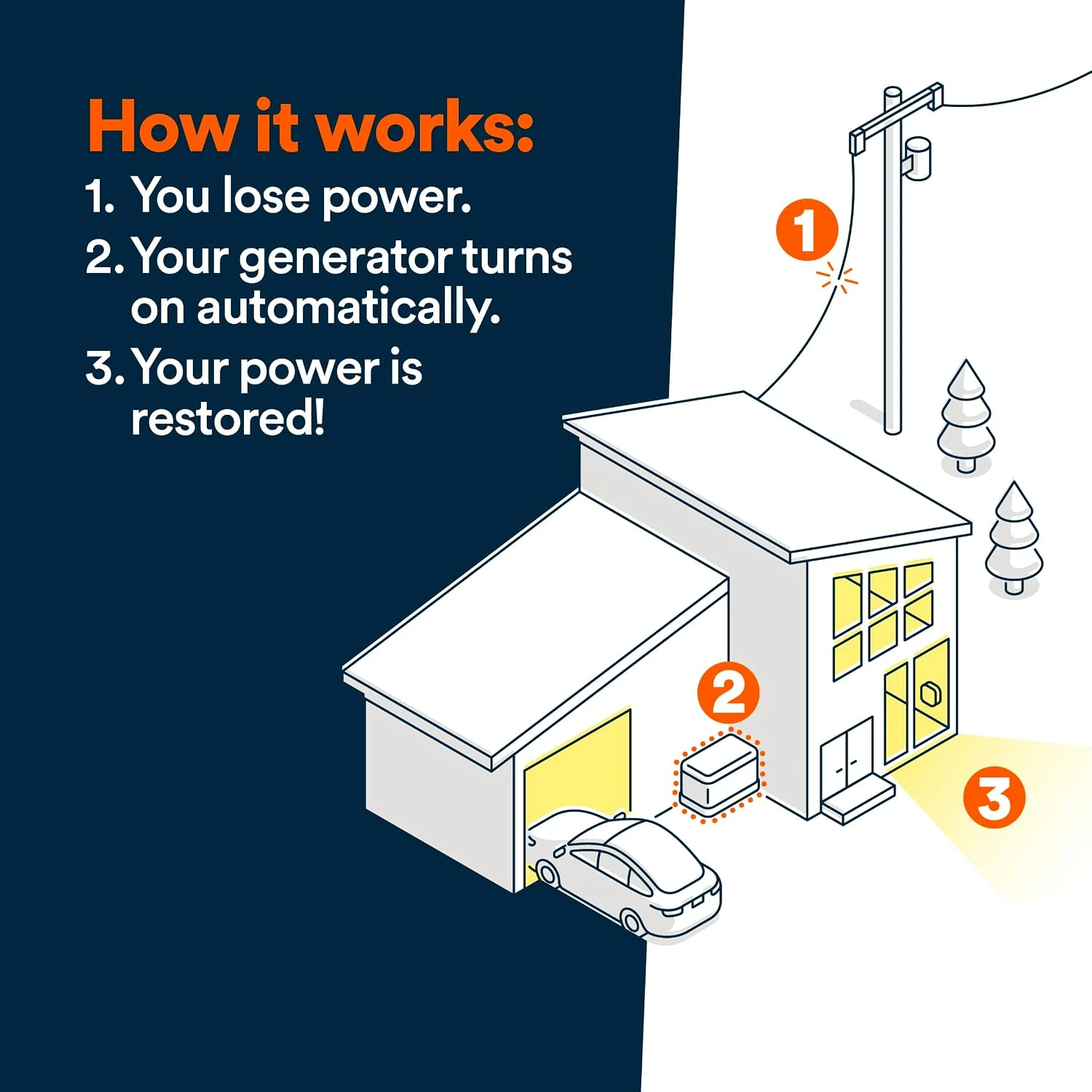

⚡ Live Outage Demonstration

Automatic 10-Second Blackout Response

Experience how the Generac Guardian detects utility grid collapse and restores continuous utility-grade power to your entire household within 10 seconds flat—completely hands-free.

Utility Grid Status ISOLATED Utility Line Loss

G-Force Engine PURRING (QUIET-TEST) 3,600 RPM Stabilized

Output Voltage 240.0 VAC (<5% THD) Clean Utility Grade

Home Electrical Panel 100% RESTORED All Circuits Active

0.0 SECONDS

1. Utility Grid Collapses

Severe storm or grid equipment failure cuts high-voltage lines. Line voltage instantly drops to 0V. The Generac Evolution 2.0 digital controller senses grid loss within milliseconds.

5.0 SECONDS

2. G-Force Engine Auto-Starts

Full pressure lubrication circulates synthetic oil instantly. The 999cc pressurized V-twin engine fires up and accelerates to 3,600 RPM with rock-solid electronic frequency regulation.

9.8 SECONDS

3. 200A Smart Switch Engages

The heavy-duty service-entrance contactor safely disconnects the dead utility line to prevent dangerous backfeeding, then locks into generator power across all 200 Amps.

10.0 SECONDS

4. 100% Home Power Restored

Clean electricity with <5% total harmonic distortion (THD) energizes central AC compressors, refrigeration, water heater, home office, and lighting without a glitch.

Architectural Power Distribution: The Generac 200A Smart Transfer Switch sits right at the utility entrance, automatically managing the heavy continuous load across kitchen, HVAC, well pumps, bedrooms, and electric vehicles.

Whole-Home Power Capacity

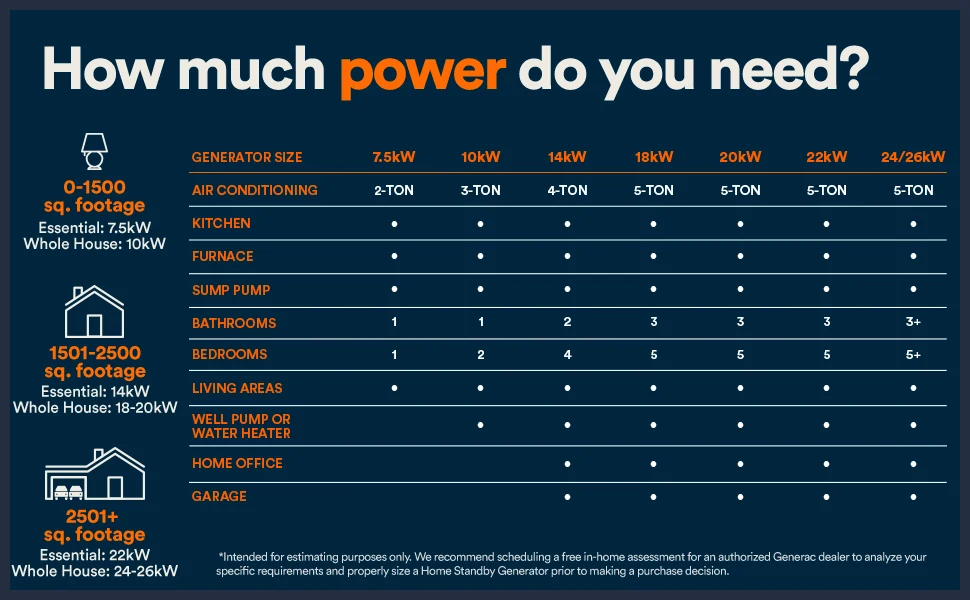

What Can 22,000 Watts Run Simultaneously?

Unlike portable generators that force you to unplug appliances and run dangerous extension cords through open windows, a Generac Guardian 22kW delivers 91.7 Amps at 240V—enough to run an entire household concurrently.

Active Load Demand: 18,600 W

Generac 22kW Continuous Capacity: 22,000 Watts (85% Load)

● All appliances operating in optimal continuous capacity zone.

4-Ton Central AC Unit

4,500 Watts (Running)

Secondary 3-Ton AC / Heat Pump

3,500 Watts (Running)

Electric Water Heater

4,000 Watts (Running)

Electric Range & Oven

3,000 Watts (Running)

Deep Well Pump / Sump Pump

1,500 Watts (Running)

Dual Refrigerators & Freezers

800 Watts (Running)

Whole-Home LED Lights & Plugs

800 Watts (Running)

Wi-Fi, Smart TVs & Home Office

500 Watts (Running)

Buyer’s Comparison

Generac Standby vs Portable Generators

Why leading property owners choose an automated whole-home standby system over portable emergency units.

Feature & Capability	Generac Guardian 22kW Standby	Traditional Portable Generator
Outage Response Time	✓ Under 10 Seconds (Fully Automatic)	✕ 30 - 45 Minutes manual wheeling & cord setup in the rain
Fuel Source & Supply	✓ Continuous Natural Gas (NG) or Large Propane (LP)	✕ Gasoline cans that spoil; refill every 3–5 hours in storm
Whole-House Central AC	✓ Powers 4-Ton & 5-Ton Central AC Systems easily	✕ Stalls out on compressor locked rotor amps (LRA)
Protection When You Are Away	✓ 100% Automated; Instant Mobile Link phone alerts	✕ 0% protection; frozen pipes burst or food spoils if not home
Weather Enclosure & Wind Rating	✓ RhinoCoat™ Marine Aluminum (150 MPH wind certified)	✕ Cannot run in rain or snow without an expensive canopy
Clean Power Quality (THD)	✓ < 5.0% THD (Safe for Macs, OLED TVs, Medical Gear)	✕ 15% – 25% Harmonic distortion (Risks frying circuit boards)
Exercise & Readiness Cycle	✓ Automated weekly Quiet-Test™ at 57 dBA	✕ Manual recoil pulling; clogged carburetors after months of storage
Warranty & Service Network	✓ 5-Year Limited Manufacturer Warranty (6,000+ US techs)	✕ 1–2 Year limited warranty; repair depot wait times

Outage Response Time

Generac Standby

✓ Under 10 Seconds (Fully Automatic)

Portable Generator

✕ 30 - 45 Minutes manual wheeling & cord setup in the rain

Fuel Source & Continuous Supply

Generac Standby

✓ Continuous Natural Gas (NG) or Large Propane (LP)

Portable Generator

✕ Gasoline cans that spoil; refill every 3–5 hours in storm

Whole-House Central AC

Generac Standby

✓ Powers 4-Ton & 5-Ton Central AC Systems easily

Portable Generator

✕ Stalls out on compressor locked rotor amps (LRA)

Protection When Away from Home

Generac Standby

✓ 100% Automated; Instant Mobile Link phone alerts

Portable Generator

✕ 0% protection; frozen pipes burst or food spoils if away

Weather Enclosure & Wind Rating

Generac Standby

✓ RhinoCoat™ Marine Aluminum (150 MPH wind certified)

Portable Generator

✕ Cannot run in rain or snow without an expensive canopy

Clean Power Quality (THD)

Generac Standby

✓ < 5.0% THD (Safe for Macs, OLED TVs, Medical Gear)

Portable Generator

✕ 15% – 25% Harmonic distortion (Risks frying electronics)

Exercise & Readiness Cycle

Generac Standby

✓ Automated weekly Quiet-Test™ at 57 dBA

Portable Generator

✕ Manual recoil pulling; clogged carburetors after storage

Warranty & Service Network

Generac Standby

✓ 5-Year Limited Manufacturer Warranty (6,000+ US techs)

Portable Generator

✕ 1–2 Year limited warranty; repair depot wait times

Generac Guardian 22kW Standby Generator · Feature 1

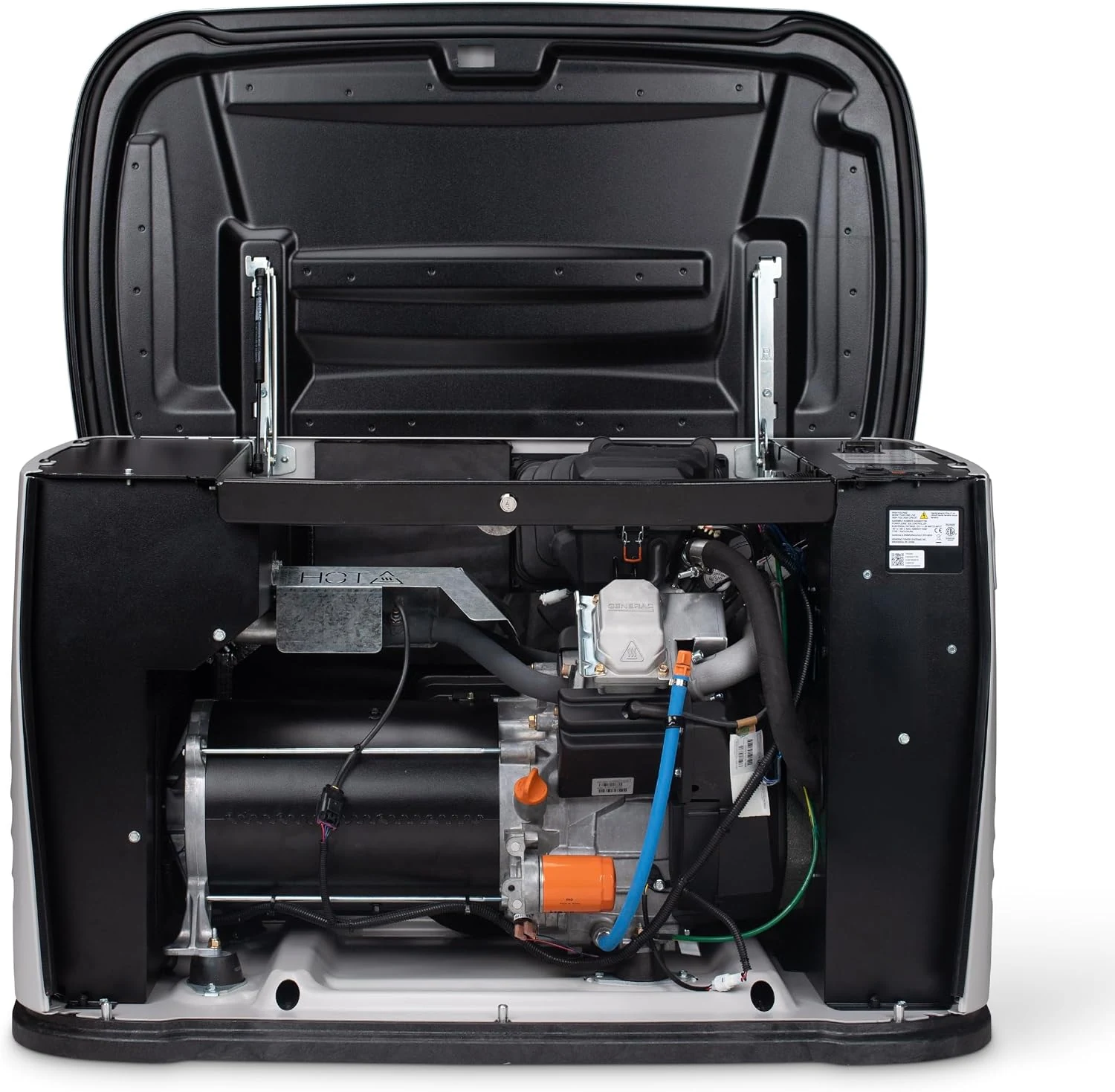

Purpose-Built G-Force 1000 Pressure-Lubricated Engine

Unlike converted lawnmower engines used by generic generators, the Generac G-Force 1000 is engineered from the ground up for the rigorous demands of emergency home backup. Featuring full pressure lubrication, spin-on automotive oil filtration, plateau-honed cast iron cylinder walls, and dual-element air filtration, it runs cooler and outlasts ordinary powerplants in 100°F heatwaves or sub-zero winter blizzards.

Generac Guardian 22kW Standby Generator · Feature 2

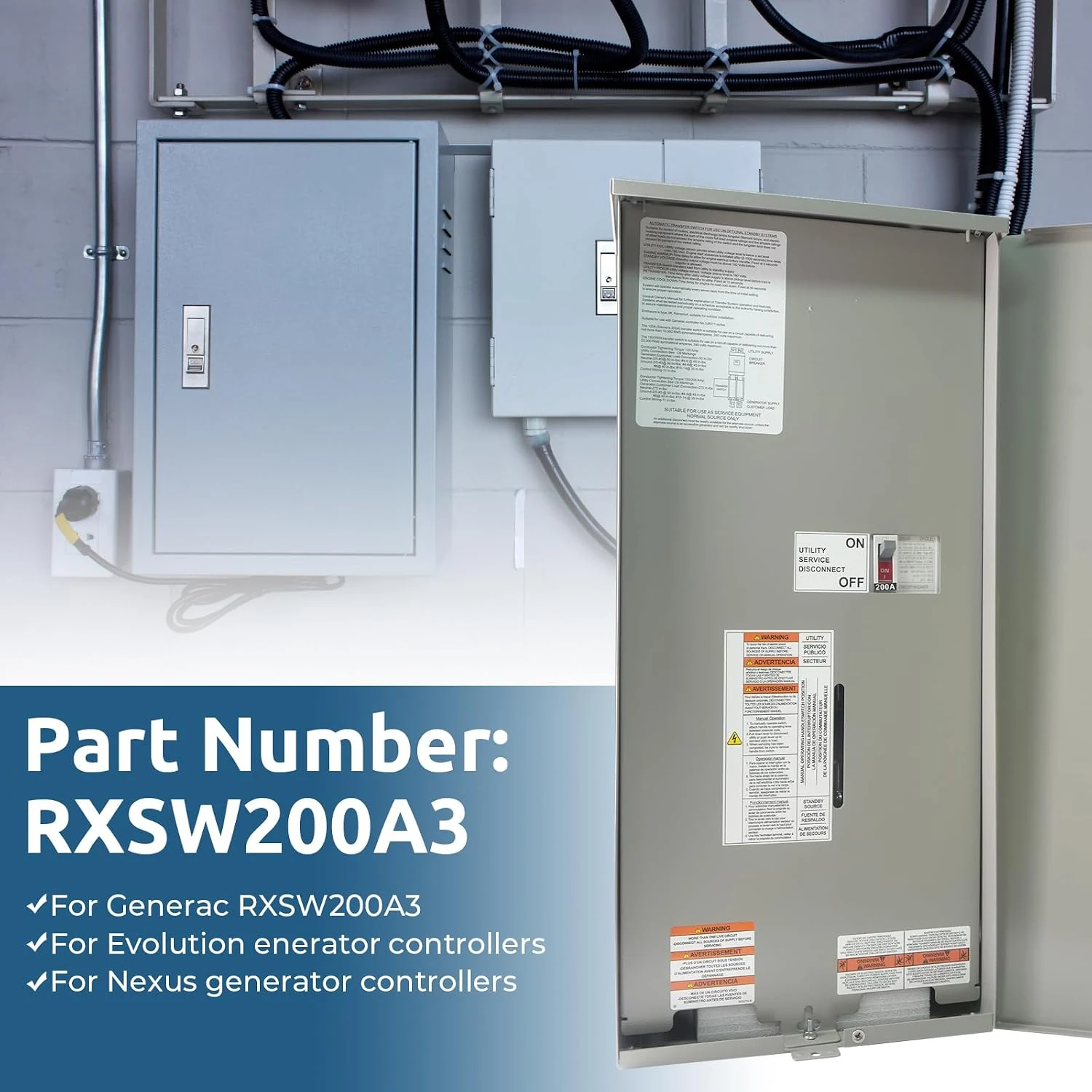

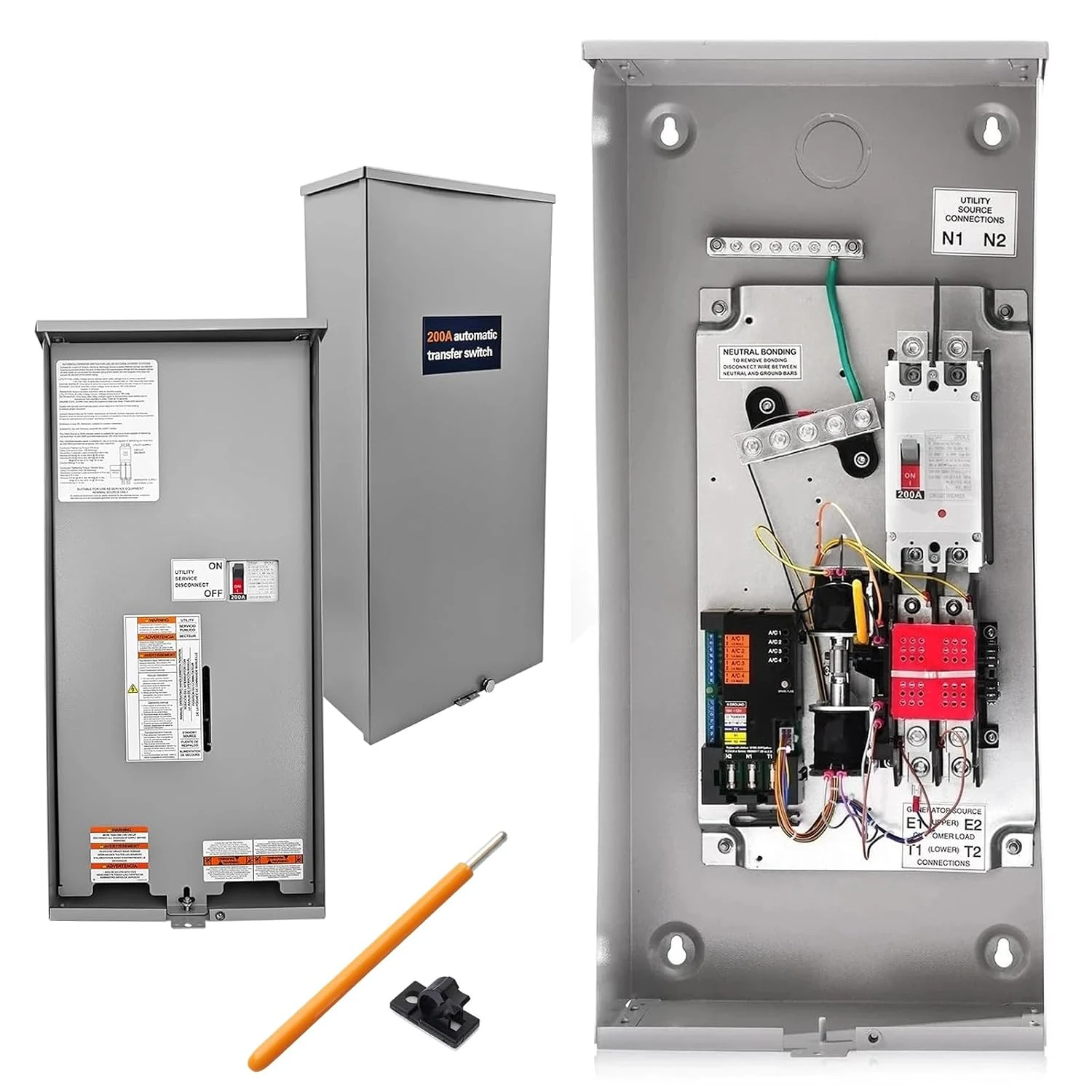

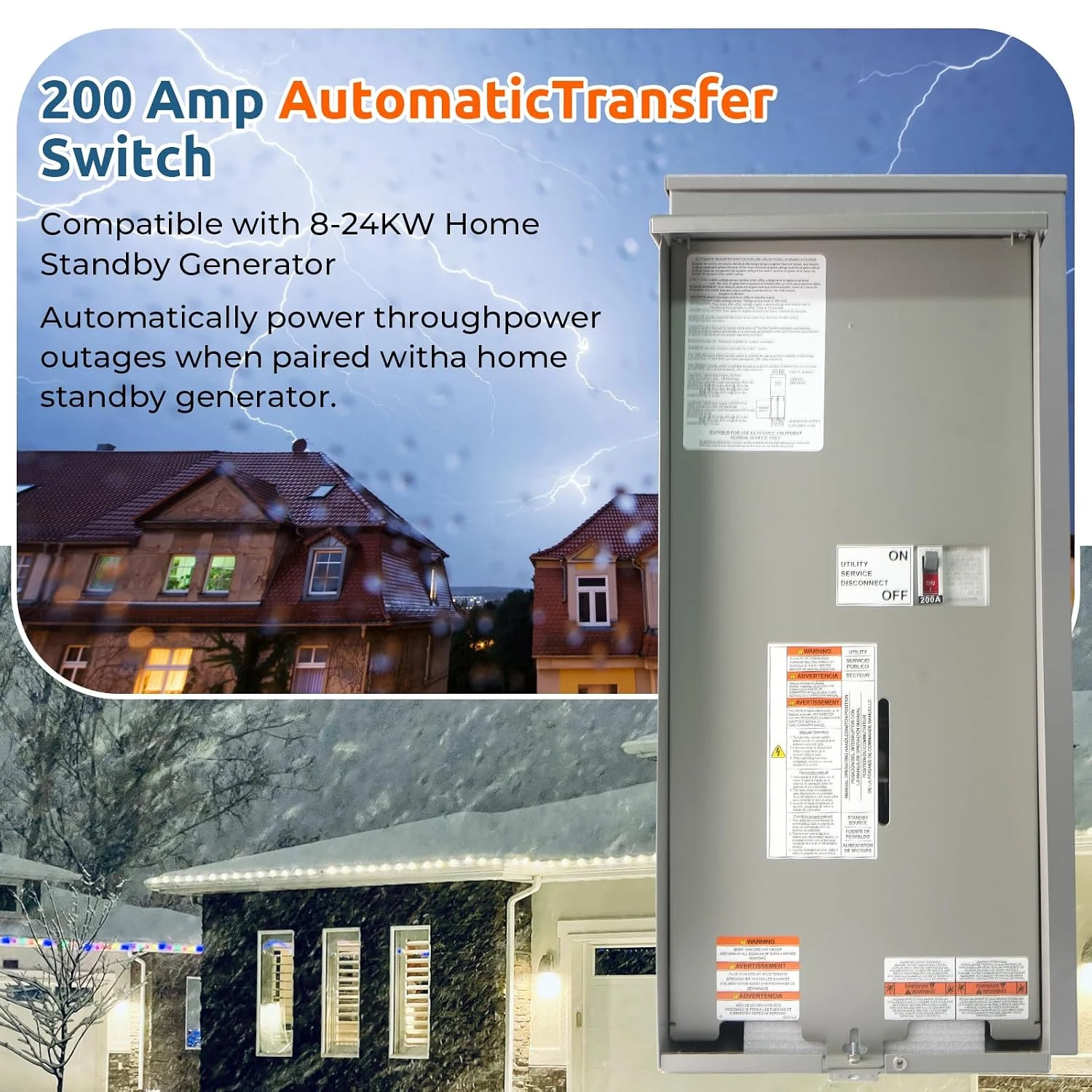

200-Amp NEMA 3R Whole-House Smart Automatic Transfer Switch

Included in this complete package is the factory-matched Generac 200-Amp Service Entrance Rated Transfer Switch. Encased in a rugged NEMA 3R outdoor-rated aluminum cabinet, it mounts directly alongside your main electrical meter, automatically disconnecting the dead utility line and routing 22,000 watts of generator power across your entire breaker panel.

Generac Guardian 22kW Standby Generator · Feature 3

Mobile Link™ 4G / Wi-Fi Real-Time Remote Monitoring

Keep total control of your generator from your iOS or Android smartphone, tablet, or PC. Mobile Link provides real-time status updates, battery voltage readings, maintenance reminders, and instant blackout alerts. You’ll know the moment power fails and exactly when your Generac restores it—whether you are sleeping upstairs or vacationing across the globe.

Generac Guardian 22kW Standby Generator · Feature 4

Quiet-Test™ Low-RPM Self-Exercise Cycle

To guarantee 100% readiness when disaster strikes, the Guardian automatically performs a weekly or bi-weekly self-test. Using Generac’s patented Quiet-Test mode, the engine runs at reduced RPMs, creating whisper-quiet sound levels comparable to a normal conversation while consuming less fuel than traditional standby units.

Generac Guardian 22kW Standby Generator

Specifications

Figures for this model. If you need a detail that isn’t listed, ask us and we’ll check before you order.

Ask about this model

Model Number	70432 / G0070432 (Guardian Series)
Rated Continuous Power (LP)	22,000 Watts (91.7 Amps at 240V)
Rated Continuous Power (NG)	19,500 Watts (81.3 Amps at 240V)
Voltage / Frequency	120 / 240V Single Phase, 60 Hz
Total Harmonic Distortion (THD)	Less than 5.0% (Clean Utility Grade)
Transfer Switch Included	200-Amp Whole-House Service Disconnect, NEMA 3R Outdoor Rated
Transfer Switch Enclosure	NEMA 3R Aluminum / UL Listed
Engine Type	Generac G-Force 1000 Series V-Twin OHV
Engine Displacement	999 cc
Cylinder Sleeves	Cast iron cylinder sleeves with plateau-honed walls
Lubrication System	Full pressure lubrication with spin-on automotive oil filter
Oil Capacity / Type	1.9 Quarts (1.8 L) / 5W-30 Full Synthetic
Governor Type	Electronic Isochronous (±0.25% frequency regulation)
Fuel Delivery	Natural Gas (NG) or Liquid Propane Vapor (LP) toolless conversion
LP Fuel Consumption (50% Load)	2.16 Gallons/Hour (92.0 cu ft/hr)
LP Fuel Consumption (100% Load)	3.68 Gallons/Hour (156.0 cu ft/hr)
NG Fuel Consumption (50% Load)	184 cu ft/Hour
NG Fuel Consumption (100% Load)	281 cu ft/Hour
Sound Output (Quiet-Test)	57 dBA at 23 ft (7 m)
Sound Output (Normal 100% Load)	67 dBA at 23 ft (7 m)
Remote Monitoring	Mobile Link™ Wi-Fi Onboard (Cellular Optional)
Controller Type	Evolution 2.0 Multilingual Digital Controller with Backlit LCD
Enclosure Material	All-Weather Marine Grade Aluminum with RhinoCoat™ Finish
Wind Rating	Engineered to withstand up to 150 MPH hurricane winds
Dimensions (L x W x H)	48.0" x 25.0" x 29.0" (1,219 x 635 x 737 mm)
Generator Dry Weight	448 lbs (203 kg)
Transfer Switch Weight	39 lbs (17.7 kg)
Certifications	UL 2200, CSA, NFPA 37 compliant for 18" clearance from combustible walls
Warranty	5-Year Limited Manufacturer Warranty

Generac Guardian 22kW Standby Generator

What’s included

These come with the machine.

✓ Generac Guardian 22kW Home Standby Generator (Model 70432)
✓ Generac 200-Amp Service Entrance Rated Whole-House Smart Transfer Switch (NEMA 3R Outdoor)
✓ Integrated Mobile Link™ Wi-Fi Monitoring Module & High-Gain Antenna
✓ Evolution 2.0 Digital Backlit Controller with Multilingual Diagnostics
✓ Pre-formed composite mounting pad & vibration isolation mounts
✓ Flexible fuel line connector (UL listed 12" braided stainless steel)
✓ Complete installation hardware kit & electrical wiring conduits
✓ Heavy-duty transport crate with protective weather shroud
✓ Owner manual, quick-start guide, and installation schematic

Customer reviews

Reviews from Generac Guardian 22kW Standby Generator owners.

5.0

Based on 6 reviews

100% (6)

0% (0)

Customer photos (4)

David R.

Surviving Hurricane Beryl in total comfort - best investment we ever made

Marcus & Sarah T.

10-second seamless switchover during severe ice storm

Brad K. (Licensed Master Electrician)

Electrician perspective: Cleanest 200A switch installation on the market

Thomas H.

Zero issues at -8°F in heavy lake-effect snow

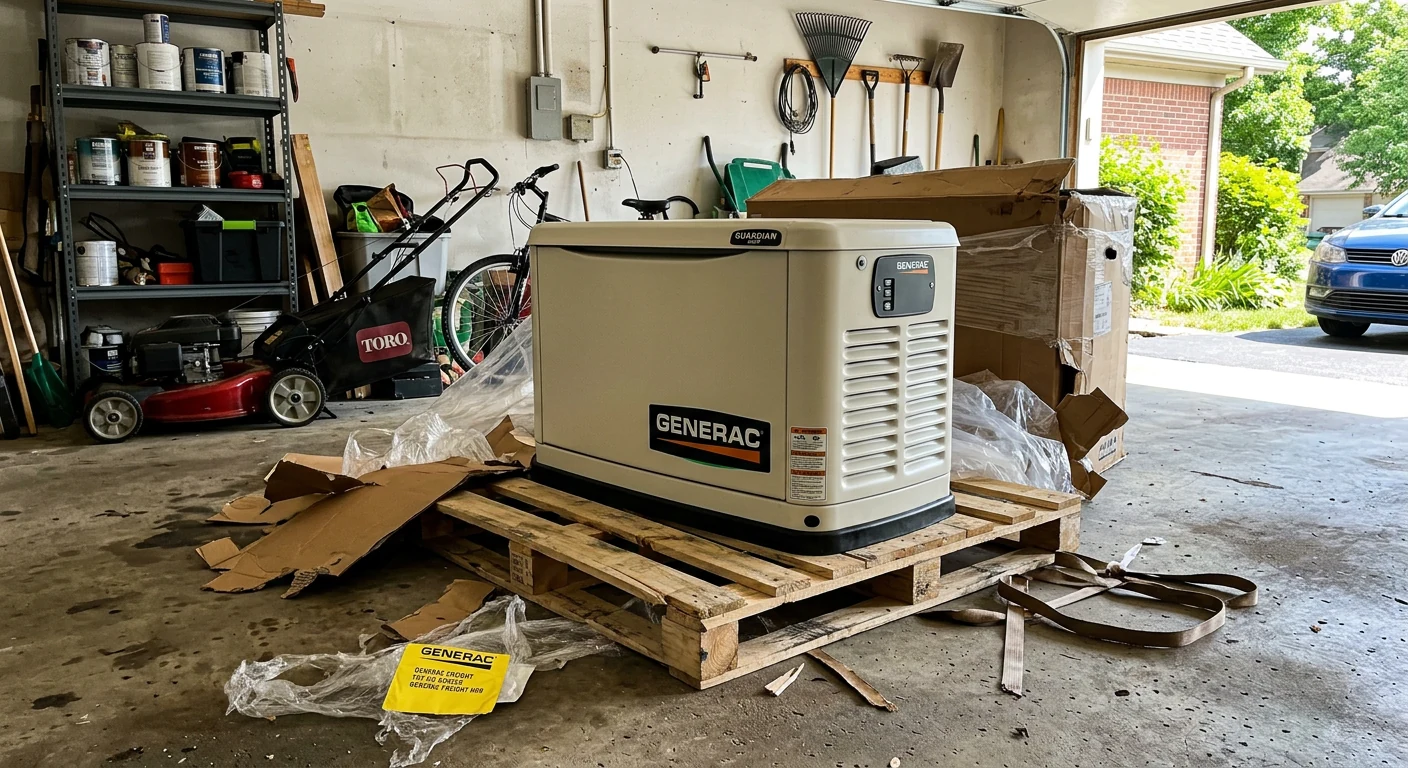

David R.

The Woodlands, TX

August 24, 2026

★★★★★

Surviving Hurricane Beryl in total comfort - best investment we ever made

We installed this 22kW Generac with the 200A switch last fall. When the hurricane knocked out the power grid for our neighborhood for nearly 6 full days in 95-degree Texas humidity, this unit kicked on in under 10 seconds. It powered our 4-ton dual-zone central AC, two full-sized refrigerators, deep freezer, and lights non-stop without skipping a beat. Neighbors were sweltering and hauling smelly gasoline cans while we had cold AC and Wi-Fi. Truly life-changing peace of mind.

Marcus & Sarah T.

Charlotte, NC

September 12, 2026

★★★★★

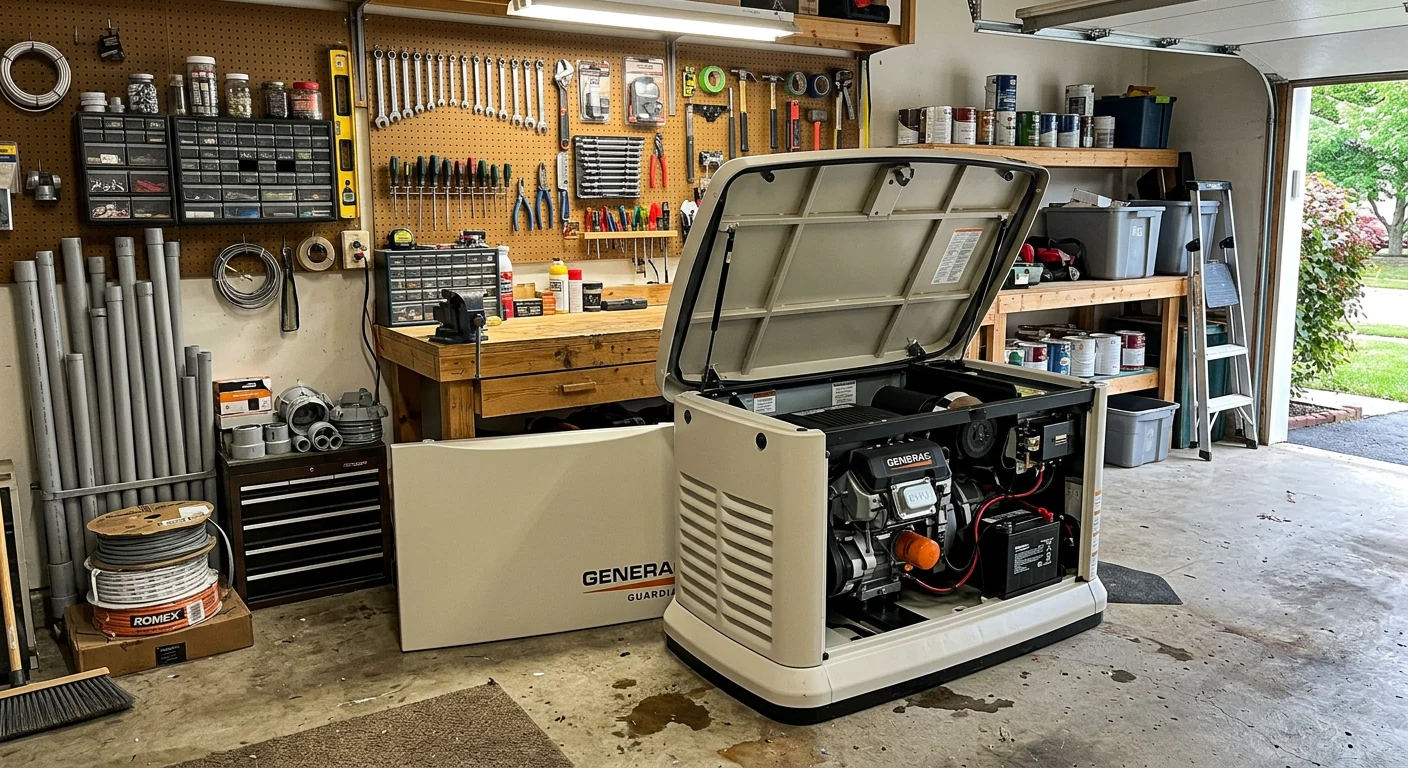

10-second seamless switchover during severe ice storm

We had a severe winter storm take down power poles across our county. We were sitting in the living room having dinner when the lights flickered and went black; exactly 8 seconds later, the Generac engine fired up, the transfer switch clicked over, and every light in the house came right back on. The heating system never dropped temp. The Mobile Link app sent an instant notification to my phone. Worth every penny.

Brad K. (Licensed Master Electrician)

Tampa, FL

September 30, 2026

★★★★★

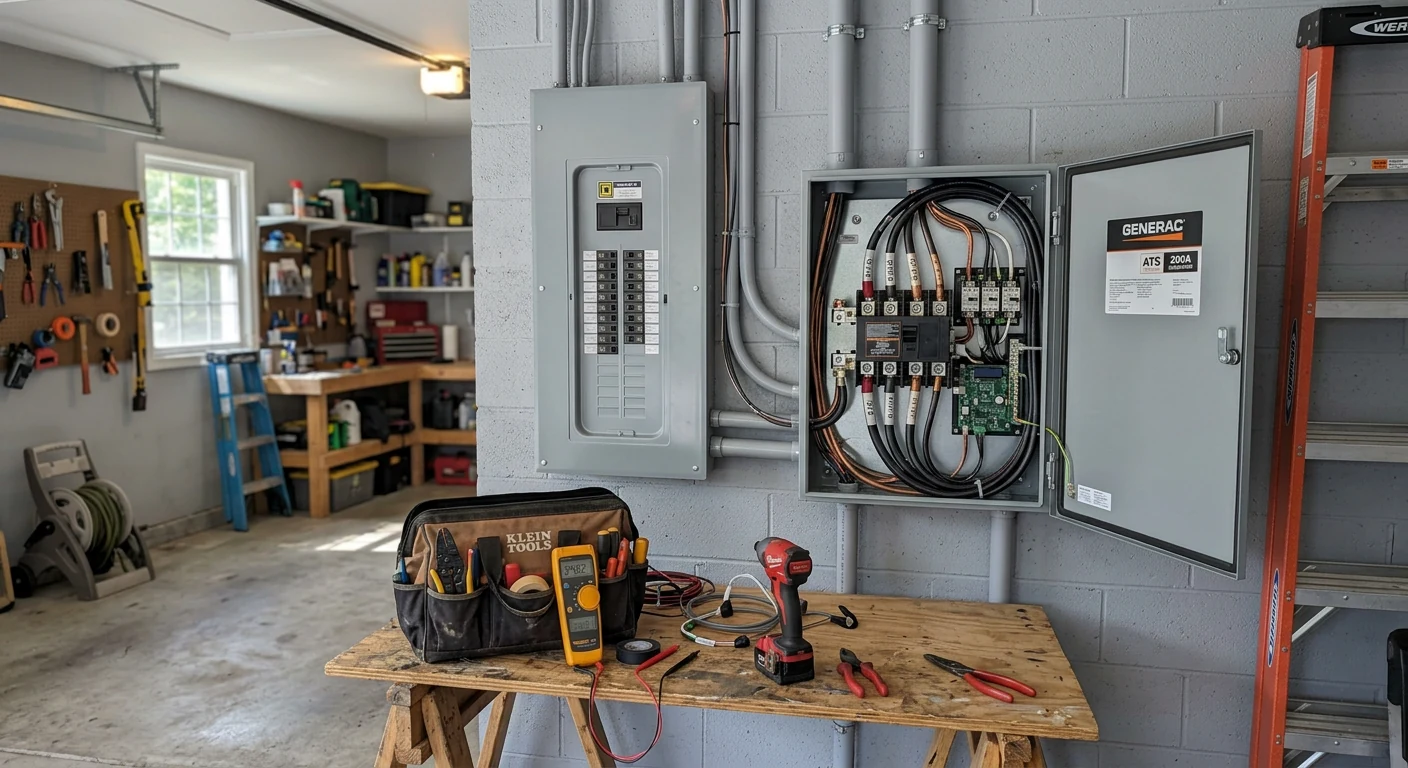

Electrician perspective: Cleanest 200A switch installation on the market

I have installed dozens of standby generators over 18 years in Florida. Generac nailed the design with this Guardian series. The pre-wired 200-Amp service entrance transfer switch has generous gutter space, clear labeling, and top-tier heavy lug connectors. The G-Force 999cc engine fired up on natural gas on the very first crank with rock-solid 240V / 60.1Hz frequency regulation. My clients rave about the low vibration and quiet exercise cycle.

Thomas H.

Cleveland, OH

October 3, 2026

★★★★★

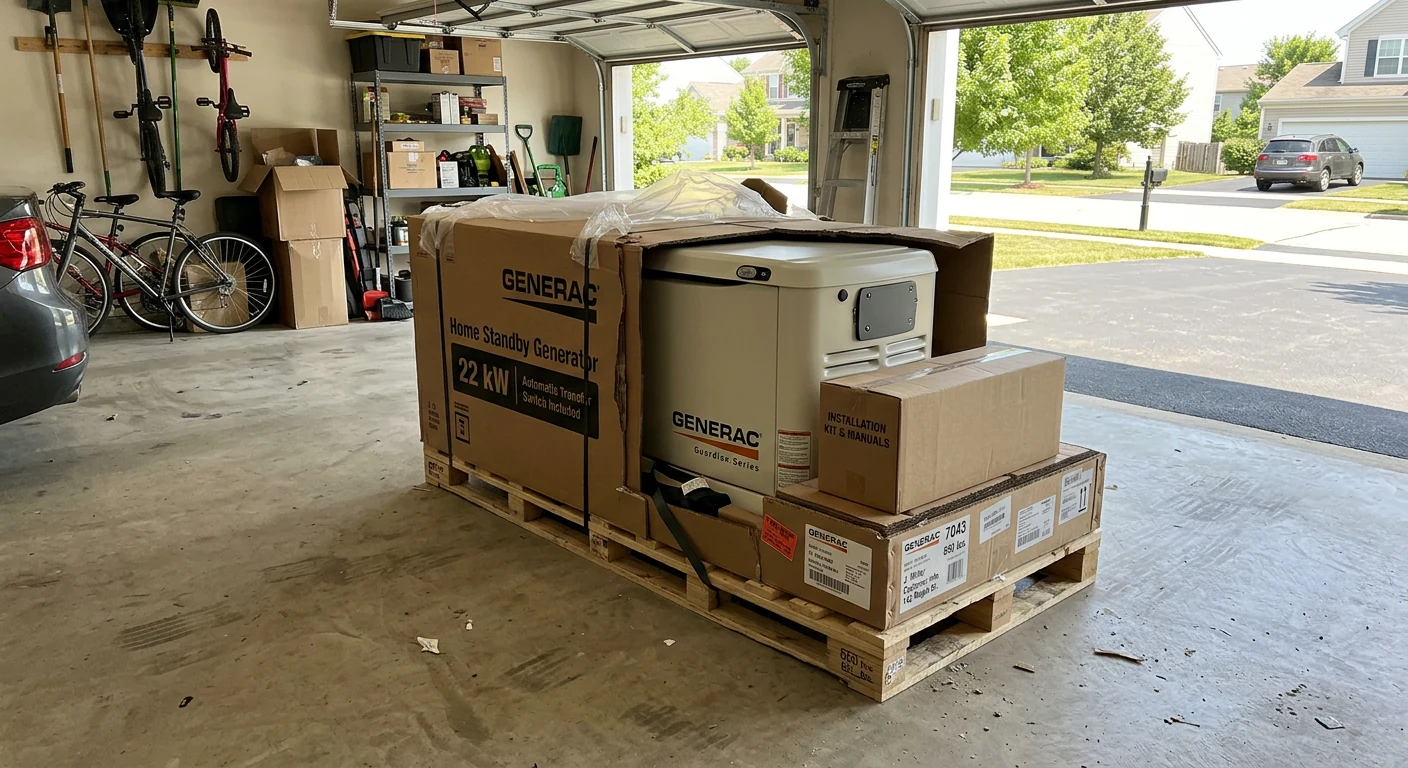

Zero issues at -8°F in heavy lake-effect snow

Cleveland winters are brutal, and losing power with freezing temperatures can burst pipes in hours. We had 2 feet of lake-effect snow and sub-zero wind chills when the grid collapsed. The Generac Guardian started effortlessly in the bitter cold and ran continuously for 38 hours until the utility trucks finished repairs. The aluminum RhinoCoat housing has zero corrosion or rust.

Cheryl & Jim P.

Atlanta, GA

September 18, 2026

★★★★★

Powers two 3.5-ton AC units, pool pump & kitchen without straining

Our previous portable 8,500W generator required running cords through windows and couldn't run our central air. Upgrading to this 22kW permanent standby unit was the best decision. The 200A smart switch manages our two 3.5-ton air conditioner compressors effortlessly with smart load shedding. Freight delivery arrived with a courteous driver who pallet-jacked it straight into our garage.

Robert M.

Pensacola, FL

October 1, 2026

★★★★★

Mobile Link app gives incredible peace of mind while away from home

We travel frequently for business, and the biggest worry was always losing power and having a flooded basement or ruined refrigerators while out of state. With Mobile Link connected to our home Wi-Fi, I can check battery voltage, exercise logs, and utility status from anywhere. It ran its weekly Quiet-Test yesterday right on schedule.

Generac Guardian 22kW Standby Generator

Questions and answers

Can’t find what you need? Send us a message and we’ll get back to you.

Will the 22kW Guardian power my whole house including central air conditioning?

Yes. The 22,000-watt continuous output and 200-Amp service entrance rated transfer switch are engineered to handle modern 2,500 to 4,500 sq ft homes. It comfortably powers a 4-ton or 5-ton central AC unit, electric stove, water heater, well pump, refrigeration, and electronics simultaneously. For homes with multiple large central AC units, the smart switch includes built-in load management modules to cycle heavy loads seamlessly.

Can this generator run on both Natural Gas (NG) and Propane (LP)?

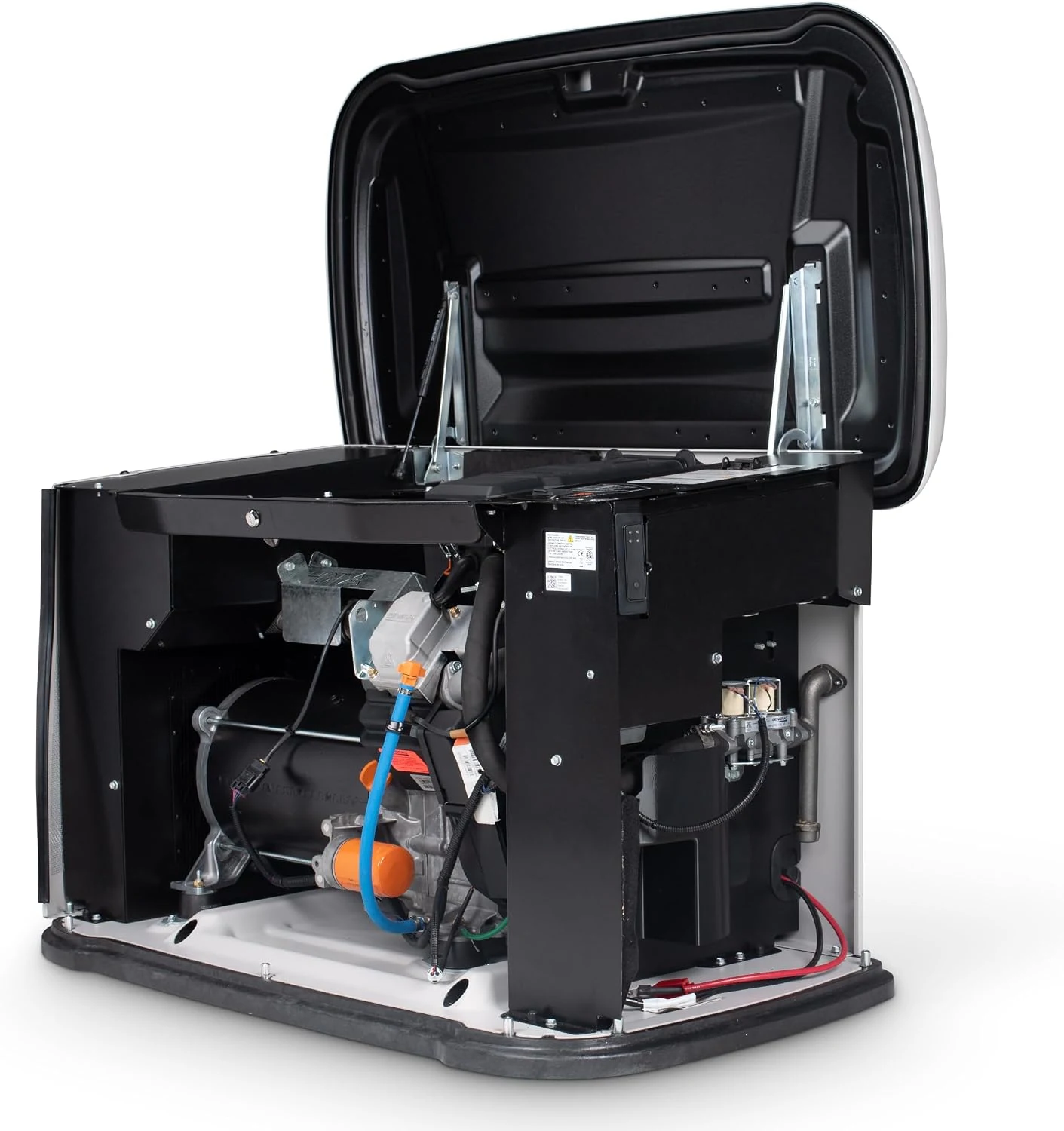

Yes. The Generac Guardian features a toolless fuel selector switch located directly inside the engine compartment. It operates directly from your home’s existing utility natural gas meter or from an external propane (LP) tank. No carburetor swapping or re-jetting is required.

How does the automatic transfer switch work during an outage?

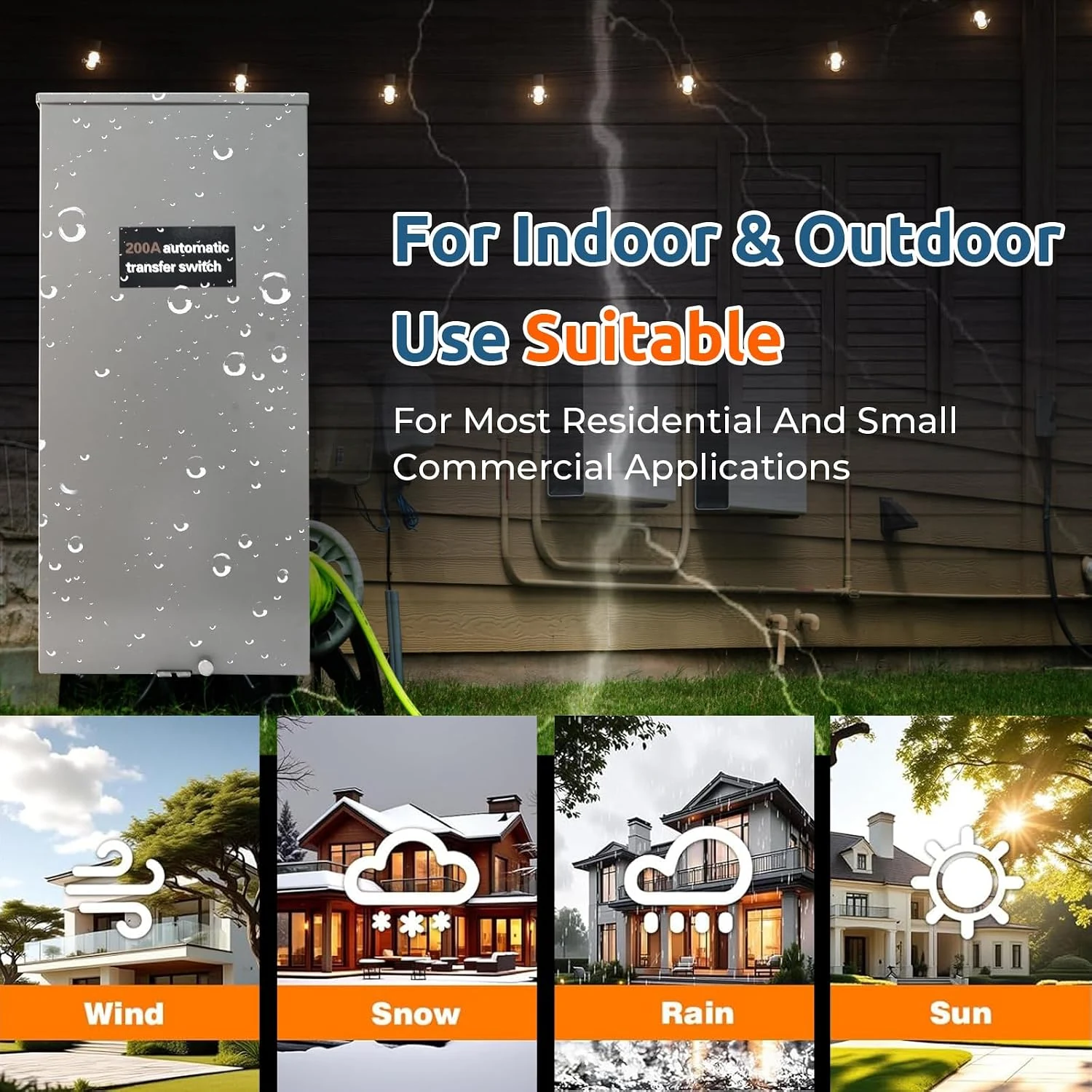

The system constantly senses utility voltage. When grid power drops for more than 5 seconds, the Evolution controller automatically cranks the G-Force engine. Once the generator reaches stable operating speed (within 10 seconds total), the 200-Amp transfer switch automatically disconnects from the grid and connects your home to generator power. When utility power is permanently restored, the switch reconnects to the grid and runs the generator for a 1-minute cool-down period before shutting down.

What is Quiet-Test™ mode and how loud is the unit?

Quiet-Test is Generac’s patented exercise mode. Once a week (or bi-weekly/monthly at the day and time you schedule), the generator runs a 5-minute self-test at lower engine RPM. In this mode, sound output is only 57 dBA—quieter than a standard household conversation. At full 100% electrical load, the generator produces 67 dBA at 23 feet, complying with all residential municipal noise ordinances.

How does freight delivery work and what is required for installation?

Shipping is 100% free with residential liftgate freight delivery included. The freight carrier will call you in advance to schedule a delivery appointment window and lower the palletized crate directly onto your driveway. For installation, we recommend hiring a licensed electrician to mount the transfer switch and a licensed plumber or gas technician to connect your natural gas or propane line.

What warranty and customer support are included?

This product includes a 5-Year Limited Manufacturer Warranty covering parts and labor, backed by Generac’s 24/7/365 customer support network and over 6,000 certified technicians nationwide.

How does delivery work?

Delivery is free to residential addresses. Orders ship from our Dallas, TX warehouse, and larger items arrive by freight with a liftgate drop at your curb or driveway. You get a tracking number by email as soon as the carrier picks up your order.
